1. It
is best to have a cabinet with a door that overlaps the cabinet box.
2. Cabinet is lined with one inch or thicker air-conditioning duck board,
$65.00.

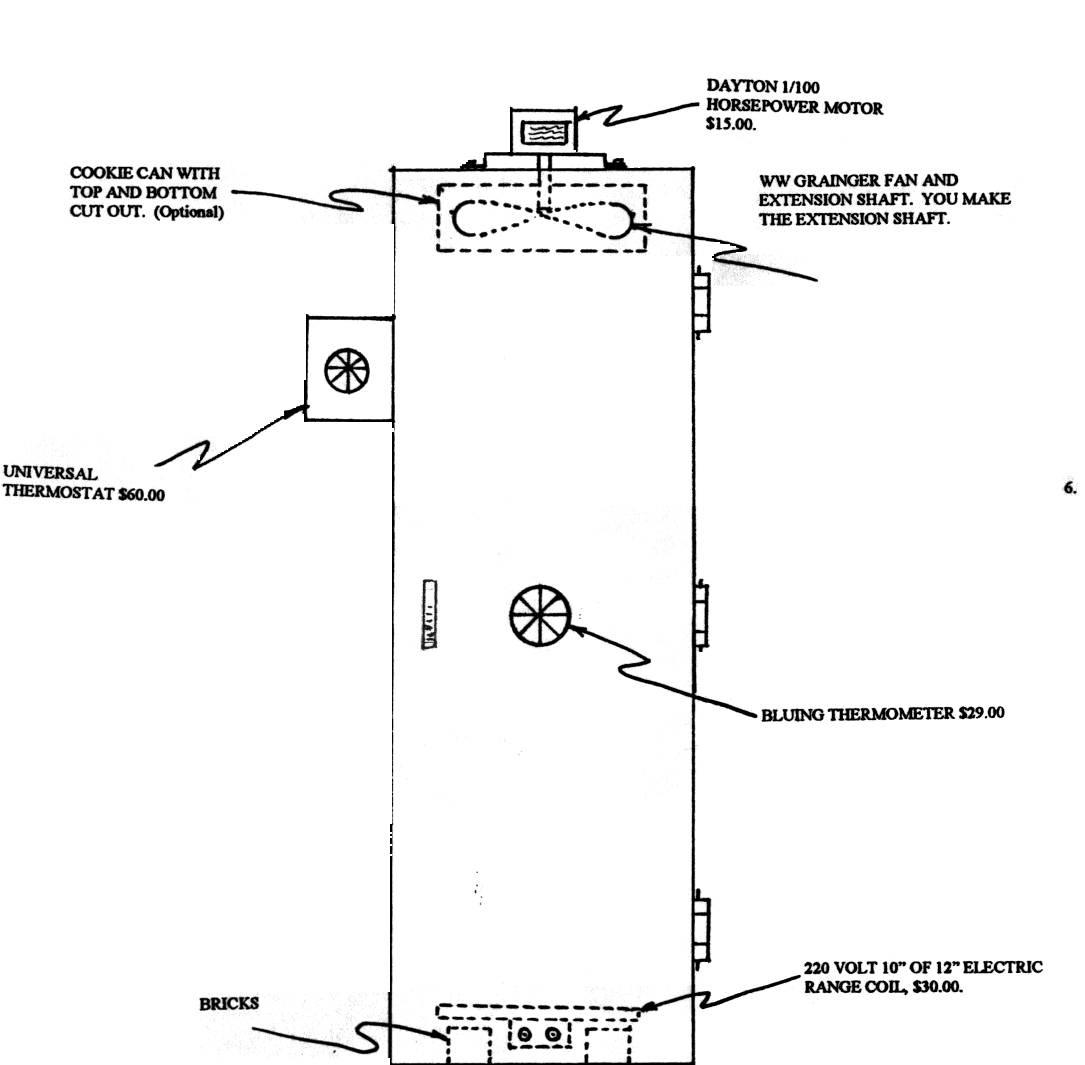

3. Door is sealed with universal oven door seals, $12.00. 4. Thermocouple from the thermostat enters the cabinet from the rear centered. 5. Tap one leg of the 220 volt line to power the fan motor. 6. Oven dimensions are approximately 60" high X 20" wide X 18" deep. 7. If you would like to have oven box built by a sheet metal shop, it will cost around $450.00 or much less if you shop the price. Small welding shops give the best prices. 8. The best ready-made cabinet available is a $150.00 to $200 or less "Stack" gun safe sold by Academy. It is the right size and simply needs to be insulated and outfitted as shown in the drawing above.

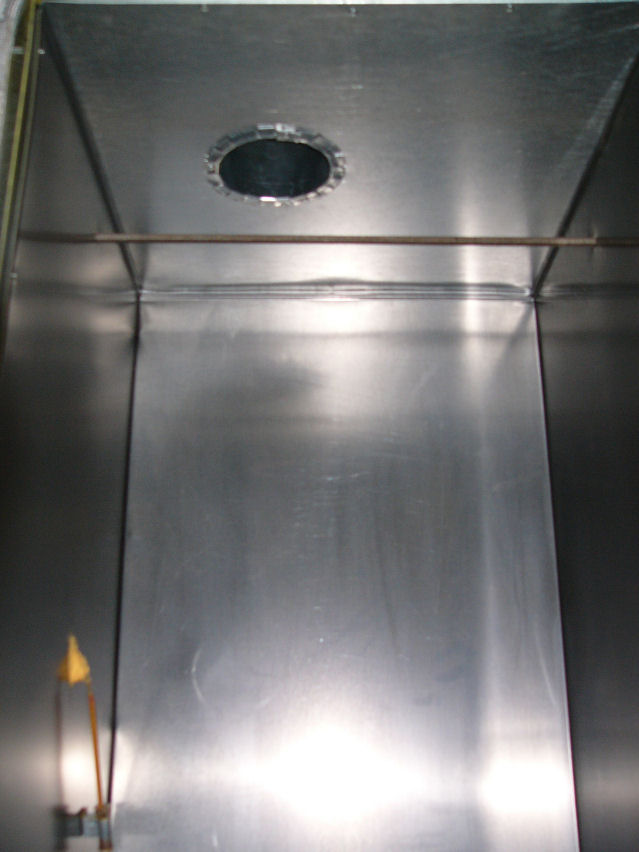

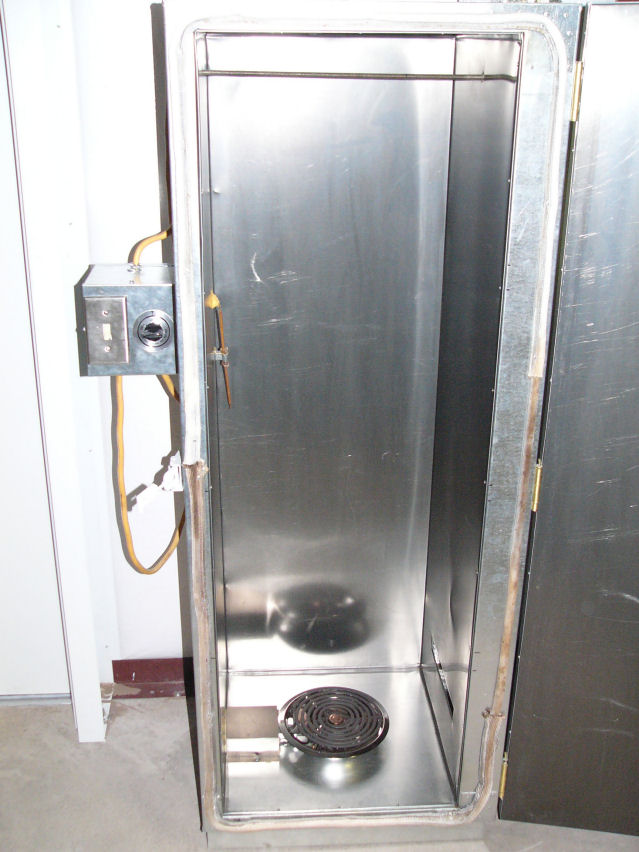

HAVE IT BUILT FOR YOU: For those of you who do not have time to build your own oven a professional sheet metal man will build one for you for $1,500 plus shipping. This is a professional air circulating oven built to the specifications mentioned above which are about 5.5'high X 20" wide and 18"deep. This oven is far superior to the one shown above since the air circulating system is completely external without a fan blade inside. Your first five or six jobs will pay for this high quality small shop oven.
If you would
like to have this oven built and shipped to you please contact: Jimmy Barr;
Barr-None Sheetmetal; 11 Boeing Blvd; Alamogordo, NM 88310 (505-430-8561)
|
| GRIEVE PROFESSIONAL
OVENS:Industry leader in industrial oven technology
offers an oven with the approximate dimensions of the one mentioned.
It is their model 323 selling for around $7,000 plus
shipping. For the large industrial shop this is your best
option which includes digital readout and positive temperature control
plus or minus one degree and excellent air circulation. For more information
please go to their Web site: "http://www.grievecorp.com/catalogue/303/303.html"
|
